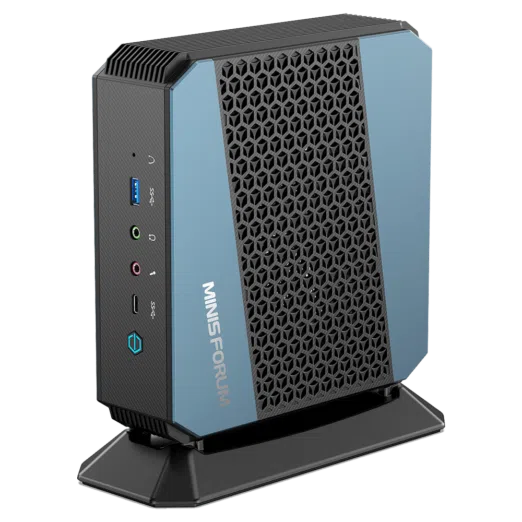

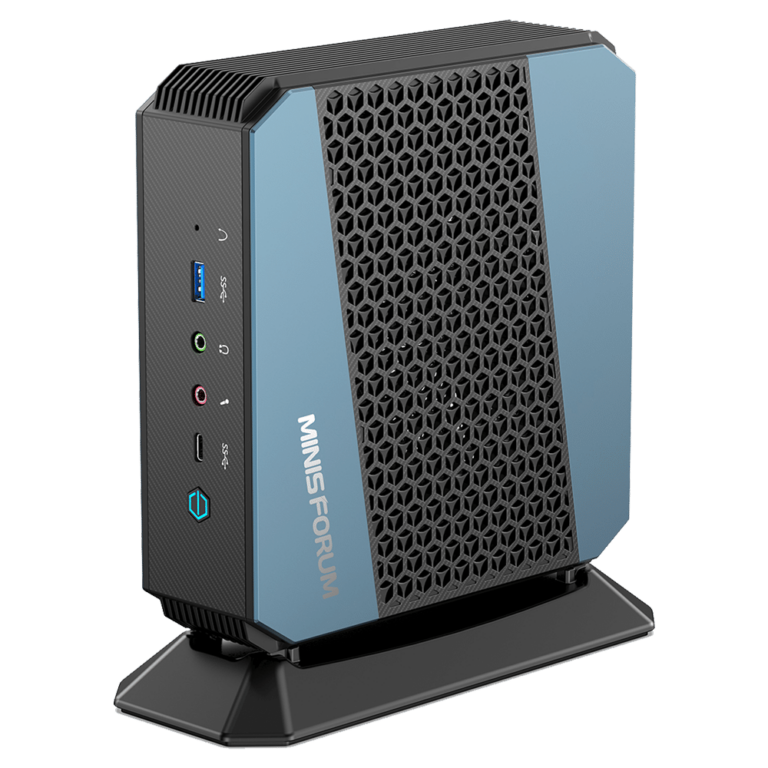

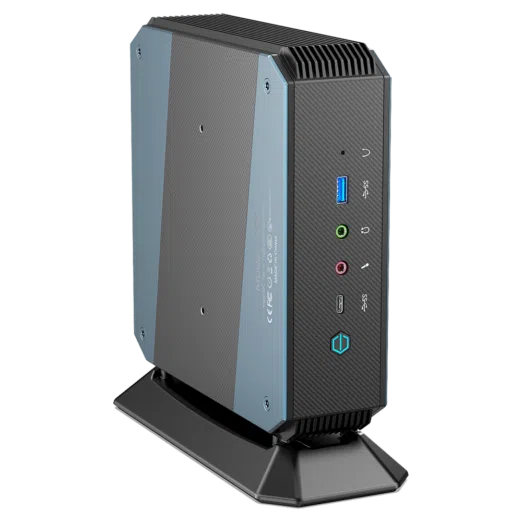

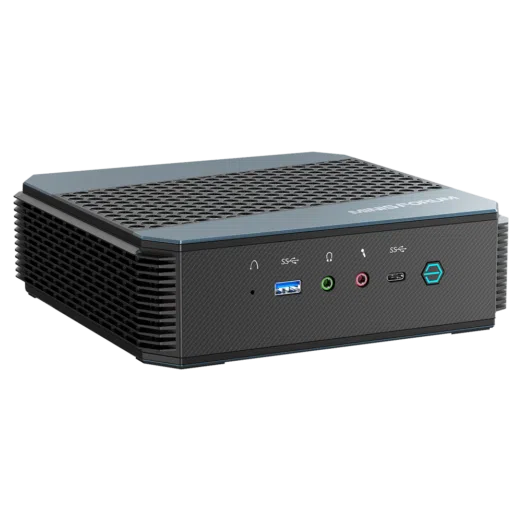

MinisForum EliteMini HX90 – AMD Ryzen 9 Mini PC

  • AMD Ryzen 9 5900HX @ 4.6GHz cTDP: 35-54W
  • Up to 32GB Dual-Channel DDR4, 1TB NVMe
  • Radeon™ Vega Graphics
  • Quad monitor; 4K@60Hz
  • WiFi 6 & Bluetooth 5.1, USB 3.0, Type C

In stock

From £799.85


The MinisForum HX90 is a high-performance mini PC that combines a futuristic, practical design and high performance into a sleek, miniature form factor.

Powered by a cutting-edge AMD Ryzen 9 5900HX processor, the HX90 fully utilizes all eight-cores to their maximum potential, capable of running at up to frequencies of 4.6GHz. This, combined with the powerful integrated AMD Radeon Graphics suite, the HX90 is the best mini PC for gaming available on the market currently.

This gaming mini PC’s performance is further bolstered by the respectable dual-channel SO-DIMM DDR4 RAM running at speeds of up to 3200mHz. There is also an M.2 NVMe PCIe 3.0 SSD to provide lightning-fast loading speeds for all your apps and games.

Need more storage? Have no fear, as the HX90 also supports not one, but TWO 2.5 inch HDDs/SSDs of your choice with its built-in SATA III drive bays.

How about screens? The HX90, despite its small size, comes as equipped as a full office computer. Capable of supporting up to four monitors simultaneously at up to 4K@60Hz (2x DisplayPort, 2x HDMI 2.0). Game, chat, binge and surf all at once with the HX90.

Additionally, this ryzen mini pc features five USB 3.0 ports as well as a USB Type-C port for high-speed connectivity of devices. It also features a 2.5 Gigabit ethernet port for lag-free online games.

Finally, wirelessly connect with ease to both networks and devices thanks to built-in Wi-Fi 6 and Bluetooth 5.1.

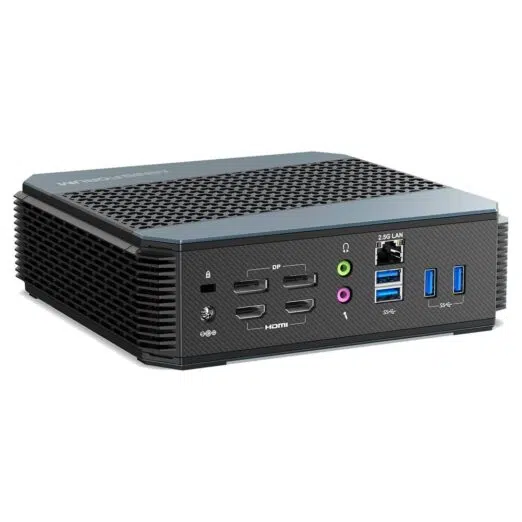

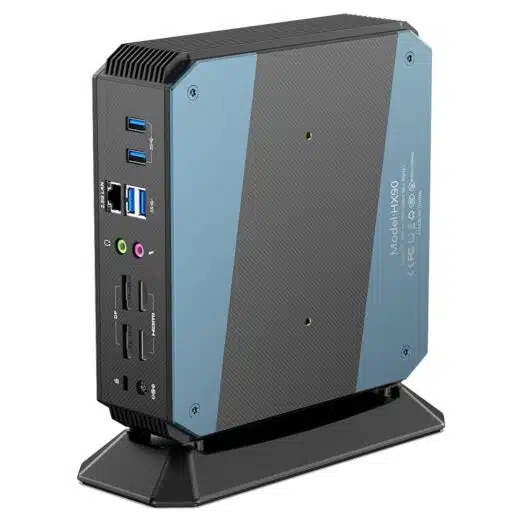

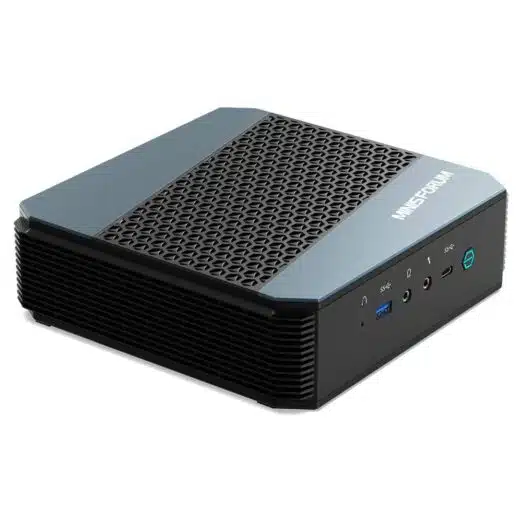

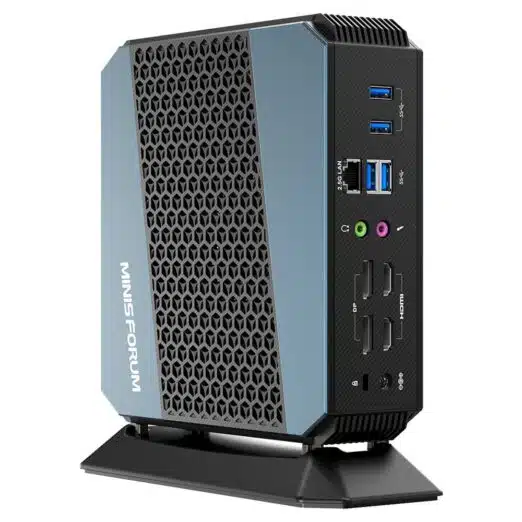

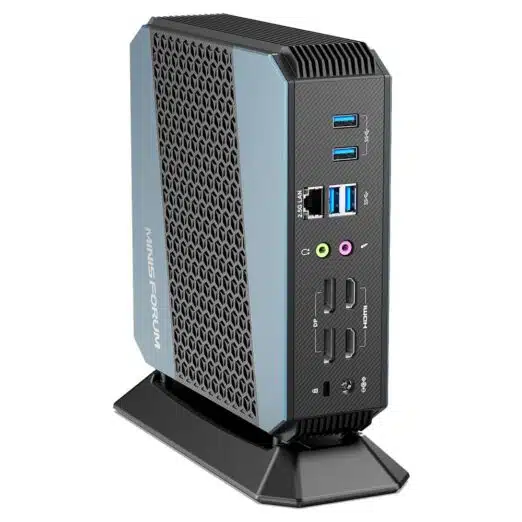

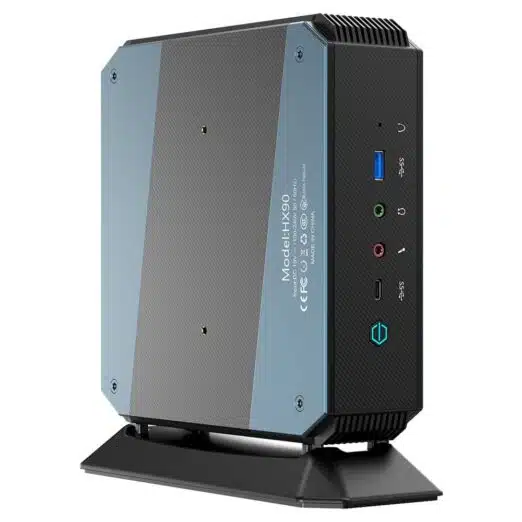

Image showing MinisForum HX90 EliteMini Mini PC playing a game Image showing MinisForum HX90 EliteMini Mini PC showcasing 4K Triple-Display Image showing MinisForum HX90 EliteMini Mini PC comparing size with iPhone Image showing MinisForum HX90 EliteMini Mini PC showing Front and Rear I/O Image showing MinisForum HX90 EliteMini Mini PC showing internal components Image showing MinisForum HX90 EliteMini Mini PC showing Cooling

OS Windows 10 Professional
Security PIN/Password
Brand AMD
Model Ryzen™ 9 5900HX
Litography TSMC 7nm FinFET
# Cores 8
# Threads 16
Base Frequency 3.3 Ghz
Turbo Frequency Up to 4.60 Ghz
Cache L2 Cache: 4MB / L3 Cache: 16MB
More Info Click Here
Graphics Processor
Interface Integrated
Brand AMD
Model Radeon™ Graphics
Frequency 2100 MHz
Graphics Core Count 8
Memory (RAM)
Capacity Up-To 32GB (Depending on the model purchased)
Technology DDR4 – Dual-Channel
Speed 3200Mhz
Storage (ROM)
Capacity 256GB/512GB/1TB(Depending on the model purchased)
Technology M.2 PCI-e NVMe SSD
Expandable 2x 2.5″ HDD/SSD Bay ; Micro SD Card Slot
Ethernet 2.5G Ethernet Adapter (RJ45)
Wi-Fi Version 6 ; 802.11a/ac/b/g/n/ax Module – Dual-Band
Bluetooth 5.2
I/O Interface
USB 1x USB Type-C 3.1 Port ; 5x USB Type-A 3.0 Port
Video 1x USB Type – C ; 2x HDMI 2.0 Port (4K@60Hz) ; 2x DisplayPort 1.4 Port (4K@60Hz)
Audio 2x Headphone Jack ; 2x Microphone Jack ; 1x USB Type – C ; 2x HDMI 2.0 Port (4K@60Hz) ; 2x DisplayPort 1.4 Port (4K@60Hz)

Customer Reviews

Based on 9 reviews
David Spencer
Very good

Nice little package, delivered quickly and works a treat.

Paul Lonsdale
MinisForum EliteMini HX90 - AMD Ryzen 9 Mini PC

Compact, powerful and quiet, a good replacement for my existing Mini PC.

John Poole
Neat compact machine, pretty quiet too.

The HX90 is a neat machine and keeps pretty cool under load even whilst running several tests at once. The energy usage was pretty good peaking at 120 watts at the wall socket but most of the time a fraction of that. For everyday tasks this will see you good for the next few years I reckon. The petite size is a great answer for small spaces and one hidden benefit if you're like me and keep all the boxes then you need a lot less space in the attic! I went to find my additional PSU leads for my large PC and had to wade through Case, Mobo, PSU boxes etc...
Whatever the issue on the liquid metal seems to have been solved and at Droix' Black Friday special price a real bargain in my view.
Mine was fitted with 1GB Nvme & 32GB Kingspec models, not kingston as I was expecting.
A bit disappointing in performance according to reviews I've seen.

Glenn Campbell
Great little unit, great value and quick delivery

Really good value - this unit arrived the next day and was quick to set up and has been a joy to use. I bought mine for work and it's a really quick PC. It's much more cost effective than the better known brands. Highly recommended.

Paul Clark

Very good
