Minisforum UM690

Starting at $790.95

-

  • AMD Ryzen™ 9 6900HX @ 4.9GHz cTDP: 45W
  • Up to 64GB Dual-Channel DDR5 &  Up to 2TB NVMe
  • AMD Radeon™ 680M @ 2400 Mhz
  • Triple monitor
  • WiFi  Bluetooth , Type C
DroiX Quality on Mini PCs

We thoroughly test each of our Mini PCs as we built them to ensure that it meets our Quality Standards.

Shipping

We offer fast DHL Express shipping and effortless returns. Note: Prices do not include VAT/TAX – The customer will be responsible to clear customs and pay appropriate VAT/TAX in their countries.

Warranty and Customer Support

Our in-house technicians are always ready to answer any technical issue you might have and all products are backed by a DroiX Warranty

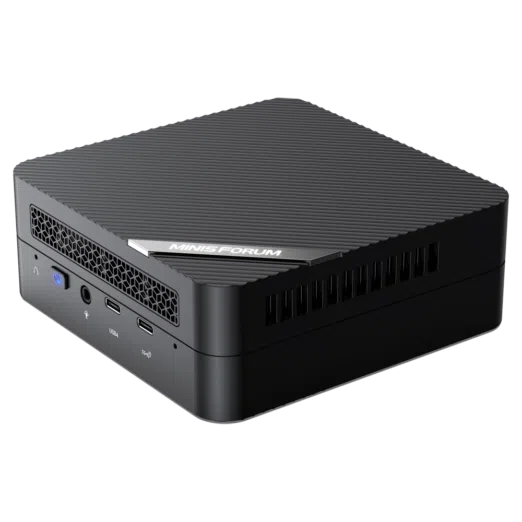

The Minisforum UM690 has all the power of a standard desktop found in a compact Ryzen Mini PC form factor.

The UM690 features the AMD Ryzen 9 6900HX processor with 8 cores and 16 threads running up to 4.9GHz at 45W TDP. Providing the graphics is the high-performance AMD Radeon 680M with 12 cores at 2400MHz. Together this Ryzen mini PC provides excellent high performance ideal for demanding home or office workloads.

The Ryzen mini PC is available with up to 64GB DDR5 RAM and up to 2TB M.2 2280 PCIe 4.0 SSD. The Minisforum UM690 also has space inside for a 2.5” SATA HDD/SSD for additional storage.

The two HDMI ports support dual displays up to 4K 60Hz or you can use the USB 4 Type-C with appropriate adaptor output for a single 8K 60Hz display. The USB 4 port found on the front of the UM690 can also be connected to an external GPU (eGPU) for even faster graphics performance! There are also 4 USB 3.2 generation 2 ports, and one additional USB 3.2 generation 2 Type-C port for connecting peripherals to the Ryzen mini PC.

Connectivity on the Minisforum UM690 Ryzen mini PC is handled with the high performance 2.5 Gigabit ethernet for wired transfer and for wireless there is WiFi and Bluetooth via the fast M2 2230 port. Together they provide excellent data transfer speed that is reliable and secure.

The Minisforum UM690 is the best Ryzen mini PC for those that require high performance while remaining in a small form factor taking up minimal space on an office desktop for example.

Additional information

Software
Operating System: No selection

Processor
Processor (CPU) Base Frequency: No selection

3.30Ghz

Processor (CPU) Brand: No selection

AMD

Processor (CPU) Cores / Threads: No selection

8 Cores / 16 Threads

Processor (CPU) Max Frequency: No selection

Up To 4.90Ghz

Processor (CPU) Model: No selection

Ryzen™ 9 6900HX

Processor (CPU) TDP: No selection

45W

Graphics Card (GPU)
Graphics (GPU) Brand: No selection

Graphics (GPU) Max Frequency: No selection

2400 Mhz

Graphics (GPU) Model: No selection

Radeon™ 680M

Graphics (GPU) Cores: No selection

12

Memory (RAM)
Memory (RAM) Capacity: No selection

16GB, 32GB, 64GB

Memory (RAM) Technology: No selection

DDR5 SO-DIMM

Memory (RAM) Speed: No selection

4800 MT/s

Storage
Storage Capacity: No selection

512GB, 1TB, 2TB

Storage Expansion: No selection

1x PCI-e 22*80 NVMe Port (Used), 1x 2.5" HDD/SSD SATA

Storage Technology: No selection

Ports
I/O Audio: No selection

1x 3.5mm Headphone&Microphone Combo Jack

I/O USB: No selection

1x USB 4.0 Type-C, 1x USB Type-C 3.2 Gen 2, 4x USB Type-A 3.2 Gen 2

I/O Video: No selection

1x Via USB 4.0 Type-C DP ([email protected]), 2x HDMI ([email protected])

Connectivity
Ethernet: No selection

1x RJ45 Port

Wi-Fi: No selection

6

Bluetooth: No selection

5.2

Product
Brands: No selection

,

Configuration: No selection

Barebones, 16GB DDR5 RAM / 512GB NVMe SSD, 16GB DDR5 RAM / 1TB NVMe SSD, 32GB DDR5 RAM / 1TB NVMe SSD, 32GB DDR5 RAM / 2TB NVMe SSD, 64GB DDR5 RAM / 2TB NVMe SSD, 64GB DDR4 RAM/2TB NVMe SSD
