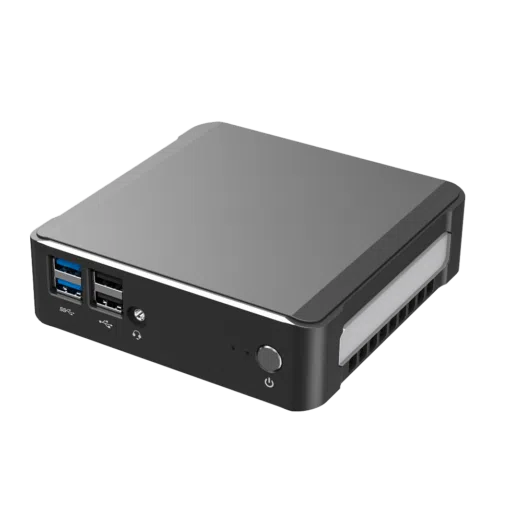

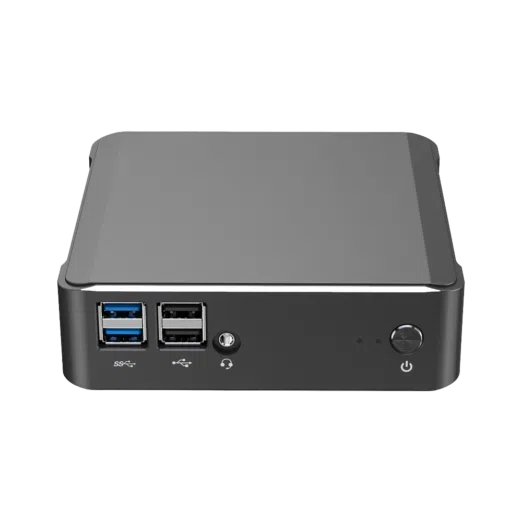

DroiX CK1 Intel NUC Mini PC with Win 10 PRO

DroiXIntel
  • Intel® Core™ i5 or i7 Processor
  • Windows 10 PRO Pre-Installed
  • 8GB/16GB/32GB DDR4 RAM / 256GB/512GB/1TB PCI-E NVMe SSD
  • Dual Displays Output
  • 2.5″ HDD/SSD Bay for Expandable Storage
  • Dual-Band Wi-Fi w/ 1GB/s RJ45 Port
Availability:

Only 3 left in stock

From £394.95

Clear

This product comes in the following configurations:

  • Core i5 8265U, 8GB Single-Channel DDR4 RAM, 256GB PCIe NVMe SSD
  • Core i5 8265U, 16GB Dual-Channel DDR4 RAM, 256GB PCIe NVMe SSD
  • Core i5 8265U, 16GB Dual-Channel DDR4 RAM, 512GB PCIe NVMe SSD
  • Core i5 8265U, 32GB Dual-Channel DDR4 RAM, 1TB PCIe NVMe SSD
  • Core i7 8565U, 16GB Dual-Channel DDR4 RAM, 512GB PCIe NVMe SSD
  • Core i7 8565U, 32GB Dual-Channel (8×2) DDR4 RAM, 1TB PCIe NVMe SSD

The CK1 Mini PC (version NVISEN Y-MU01) features a choice of processors with the Intel Whiskey Lake i7 and i5 processors, and RAM and Storage configurations. Both configurations have the Intel UHD Graphics 620 for fast up to 4K processing.

The Intel Core i7 8565U runs up to 4.6GHz and comes with 16GB or 32GB of fast DDR4 RAM and a high performance 512GB or 1TB PCIe NVMe SSD.

The Intel Core i5 8265U runs up to 3.9GHz. It comes with a variety of fast DDR4 Dual-Channel RAM and a high-performance PCIe NVMe SSD.

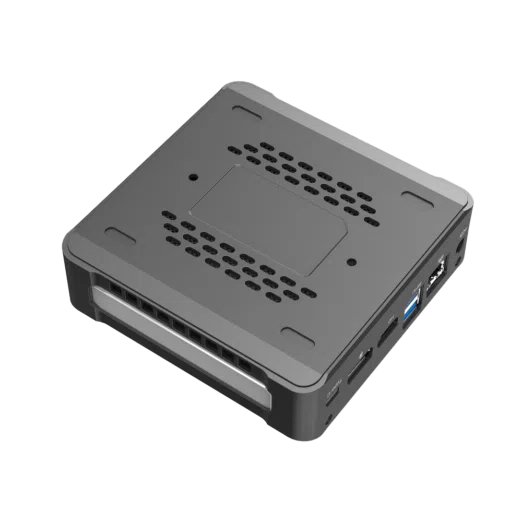

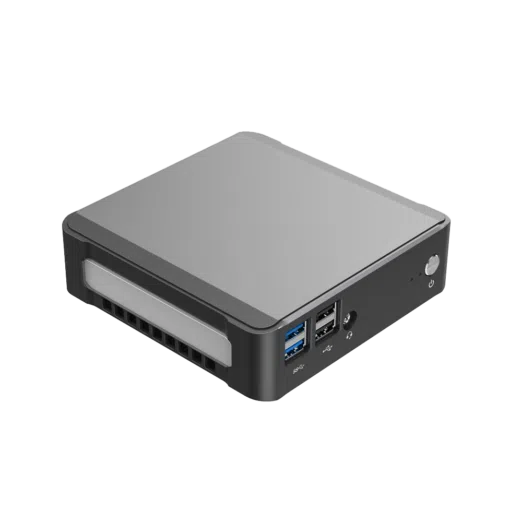

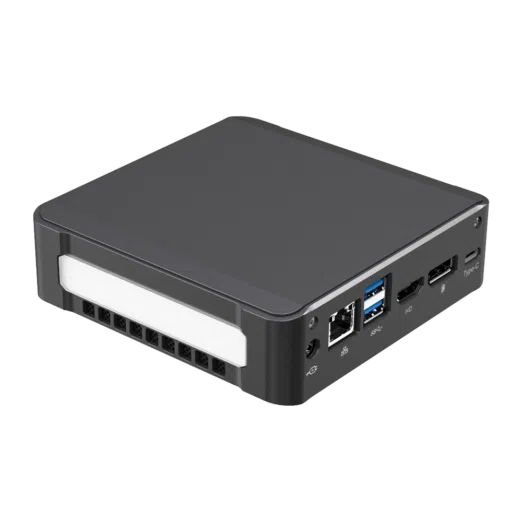

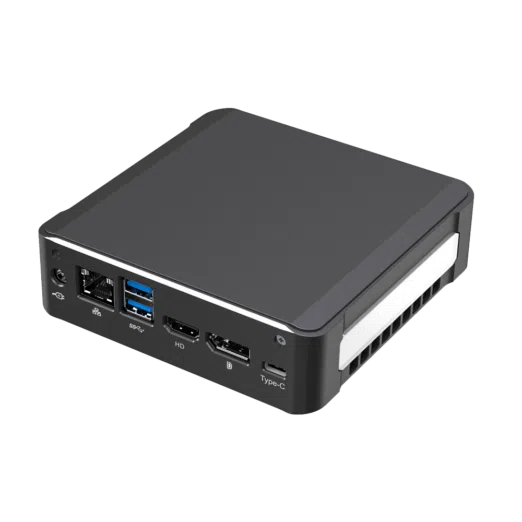

The Mini computer case is made from Aluminum Alloy measuring 12.8*12.8*3.8 cm with a VESA bracket for mounting. Located inside is a built-in fan and space to connect a SATA III SSD or HDD to further expand the storage. On the sides, you can find an HDMI 2.0 and DisplayPort both supporting up to 4K 60Hz. They can also be used together for dual 4K monitor displays..

Connectivity on the Intel NUC Mini PC like device is very well supported. There are one USB Type-C and four USB 3.0 ports for high-speed data transfer as well as two USB 2.0 ports. The RJ45 Ethernet port supports up to 1Gb/s for high reliability and the fastest transfer speed. A Dual band WIFI 2.4G/5.0G and BlueTooth 4.2 completes the Wireless connectivity.

The Mini Windows PC runs Windows 10 and can be used just like a normal desktop PC or laptop. The small form factor makes it perfect for use in the home or as an office Mini PC where space may be limited. The CK1 is the best Intel NUC Mini PC with Windows available.

Softwares
OS Windows 10 Pro
Processor
Version Intel Core i5 – 8265U
Generation 8th (Whiskey Lake)
Base Frequency 1.60 Ghz
Turbo Frequency 3.90 Ghz
# Cores 4
# Threads 8
Version Intel Core i7 – 8565U
Generation 8th (Whiskey Lake)
Base Frequency 1.80 Ghz
Turbo Frequency 4.60 Ghz
# Cores # Cores
# Threads 8 Threads
Video Processor
Manufacturer Intel
Model Intel® HD Graphics 620
Turbo Frequency 1.10Ghz (For i5 version) ; 1.15Ghz (For i7 version)
4K Support YES
OpenGL ES Support YES
Base Frequency 300 Mhz
RAM
RAM 8GB/16GB/32GB Depending on the model purchased
RAM(spec) LPDDR4
Network
Ethernet 10/100/1000M Ethernet Adapter (RJ45)
Wi-Fi 802.11a/ac/b/g/n Module – Dual-Band
Bluetooth 4.2
I/O ports
USB 1x USB Type-C 3.1 ; 4x USB 3.0 Gen1 ; 2x USB 2.0
Video 1x HDMI 2.0 (HD,CEC, Dynamic HDR, HDCP 2.2) ; 1x DP [email protected]
Audio 1x 3.5mm Headphone&Microphone Port
Power Power Adapter
Dimension/Weight
Product Dimensions (L x W x H): 12.80 x 12.80 x 3.80 cm / 5.04 x 5.04 x 1.50 inches
Product Weight 350g / 0.77lb
Package Dimensions (L x W x H): 27.5 x 18.30 x 5.5 cm / 10.83 x 7.2 x 2.17 inches
Package Weight 625g / 1.38lb

Customer Reviews

Based on 39 reviews
82%
(32)
10%
(4)
5%
(2)
0%
(0)
3%
(1)
E
Edward Francis Valletta
Great little machine

Worked straight out of the box. Blisteringly fast (compared with my old machine). Quiet. Would have given it 6 stars had there been an SD card reader built in!

M
Mr M R Egan
DroiX CK1 Intel NUC Mini PC with Win 10 PRO

good little pc arrived two days from purchase despite paying for next day delivery
although it was between xmas & New year unpacking the pc there was something loose inside it . i opened the lid up and it was the ssd card that had come out of its socket the fixing screw that held it in was tight but the hole in the ssd card was too big and the screw had not secured it i assume the ssd card came loose during delivery plugged in the ssd card and cocked it slightly so the retaining screw clamped the edge of the card
Apart From that the set up was painless and was up & running in 30 min
Living With The Pc the fan has bursts of speed when in use is there any fix for this ? overall i am happy with it so far

regards

Martin

M
Mr Barry J Wymer
CK1 2021 BJW

I has several issues setting this up straight out of the box. If you are not a experienced IT type.The Novice will struggle. So NOT for beginners. Apart from that once all issues sorted works fine.

I
Ian Bryant
Great machine

This is a great machine and I really like it. I have had it three days now, but set-up was so easy. It boots up amazingly quickly in about 10 seconds. Its fast and does everything I want. Yes, its not a gaming rig, but that's not why I bought it. I use it as a home PC, use MS Office and stream with the odd game. Really wish I had found this earlier. Couple of reviews mention the fan, which you can hear when it kicks in if you are working the machine, but it is nothing compared to a tower pc. Definitely glad I bought this. Great price for an Intel i7 (8th gen), 16GB and 512 HD.

R
Richard S
Awesome little machine!

Delivered next day and works brilliantly! Just needed a DisplayPort to VGA adapter
