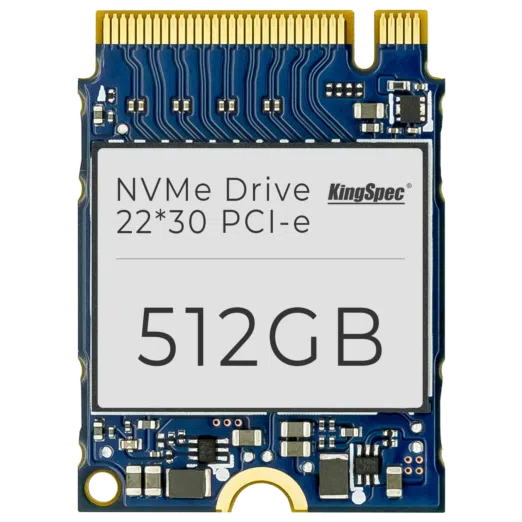

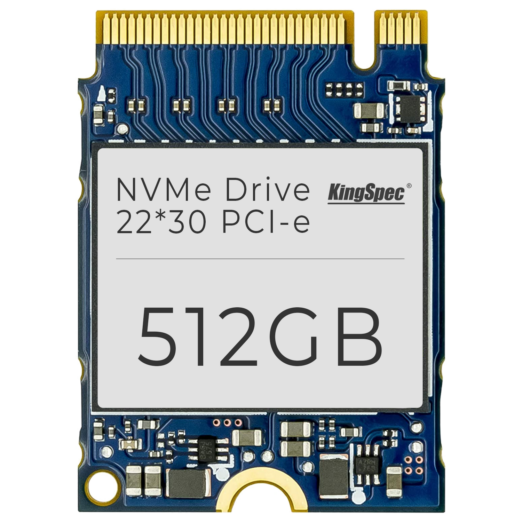

KingSpec 2230 Steam Deck NVMe Storage

KingSpec
  • Fast NVMe Speeds
  • Compatible with the SteamDeck & GPD WIN Max 2
  • 3 Years Warranty
Availability:

In stock

$74.95$125.95

The KingSpec NVMe 22*30 Solid State Drive is capable of reaching read speeds of up to 3621.35 MB/s and write speeds of up to 2314.32 MB/s. These speeds are significantly faster than those of a traditional hard drive, which can typically reach speeds of around 100 MB/s. This means that the KingSpec NVMe drive is able to access and transfer data much more quickly, resulting in faster boot times and faster launching of software.

For example, let’s say you have a large software application that you need to install. With a traditional hard drive, it might take several minutes to complete the installation process. With the KingSpec NVMe drive, however, the installation process would be much faster, as the drive is able to access and transfer the necessary data at much higher speeds.

In general, the faster read and write speeds of the KingSpec NVMe drive make it an excellent choice for those who want to improve the overall performance of their computer. Whether you’re a gamer looking to load levels faster, a creative professional working with large files, or just someone who wants a smoother, more responsive computing experience, this drive is sure to deliver.

Check bellow results for Steam Deck using KingSpec 2230 NVMe 1TB Storage :

Read Speed: 3621.35 MB/s
Write Speed : 2314.32 MB/s

The CrystalDiskMark benchmark software runs a series of tests on the storage to see its performance across different read/write patterns. The results show the optimal maximum reading and writing speeds on the first row.

SD KingSpec 2230 read write speed

SKU: N/A Categories: , ,
Overview
Support OS Windows 7, Windows 10, Windows 11, Windows Server 2012 R2, RHEL, CentOS, Ubuntu, Linux
Interface M.2 M-key ,PCIe Gen3 x 4Lane, NVME 1.3
Dimensions (L x W x H) L 30.0mm*W 22.0mm*H 2.1mm±0.1mm
Performance
NAND Type 3D NAND
Sequential Read 3627.57  MB/s
Sequential Write 2059.29 MB/s
Max Random 4k Read 220K IOPS
Max Random 4k Write 230K IOPS
Acc.Time 0.1ms
Electrical
Operating Voltage DC 3.3V±5%
Idle power consumption 0.37W(1TB)
Active power consumption 2.0W(1TB)
Reliability
MTBF 1 million hours
ECC Hardware LDPC capable of correcting errors
SMART support
Environment
Operating temperature 0~+70℃
Storage temperature -20~+75℃
Operating Humidity 5-95%
    1 * 22*30 NVMe SSD
