GPD WIN 4 RDNA2 Handheld PC

GPD
  • AMD Ryzen 7 6800U / AMD Radeon 680M
  • up to 32GB LPDDR5 @ 6400 Mhz
  • up to 2TB High-Speed PCI-E M.2 2280 SSD
  • 6” H-IPS Technology Touchscreen Display
  • WiFi 6 & Bluetooth 5.2 Support



IMPORTANT: Item on Pre-Order(charged upfront) – Availability date: 03/03/2023

Availability:

Item on backorder - Order will be shipped once in stock.

$1150.95$1400.95

The GPD WIN 4 brings high end AAA Windows gaming wherever you are with the world’s smallest AMD Ryzen 7 6800U handheld gaming PC.

Measuring only 8.6 x 3.6 x 1.10 inches (22.0 × 9.2 × 2.8 cm) and weighing around 570g, the GPD WIN 4 follows the GPD WIN 3 in true portability with a handheld gaming PC fitting into a small bag or jacket pocket.

Featuring the AMD Ryzen 7 6800U with eight cores and sixteen threads running up to 4.7GHz @ 28W TDP, with the Radeon 680M up to 2.2Ghz, you can be sure to play the latest AAA Windows games on the GPD WIN 4 handheld gaming PC at playable settings.

The GPD WIN 4 has a choice of 16GB or 32GB LPDDR5-6400 MT’s RAM and up to 2TB of fast SSD supporting up to M.2 PCIe 4.0 NVMe 2280 SSD. There is fast 802.11 a/b/g/n/ac/ax WiFi 6 and Bluetooth 5.2 for fast wireless connectivity on the GPD WIN 4 handheld gaming PC. Via a separately sold attachable module there is also support for 4G LTE nan-sim cards for mobile data.

The 6-inch H-IPS touchscreen has a 1920×1080 native resolution and supports both 40Hz & 60 Hz for configurable frame rates. This also means older games will happily run on the GPD WIN 4 handheld gaming PC and not have a rotated screen display unlike other handhelds.

The GPD WIN 4 control and design is reminiscent of the Sony PSP with dual hall sensor joysticks, classic style D-pad and linerar analog trigger buttons which feature LED lighting. There are the usual gaming buttons including two custom buttons on the back of the handheld gaming PC which can be configured.

The high-speed USB 4 port runs supports up to 40Gbps and can be used to connect external graphics cards (eGPU) to the handheld gaming PC for even faster and higher resolution gaming performance. The GPD WIN 4 also has a USB 3.2 Gen 2 for data and charging, as well as a USB Type-A port for additional peripherals.

Powering the GPD WIN 4 is a 45.62Wh li-polymer which lasts up to 10 hours light usage, 3-6 hours with moderate use and around 2 hours of heavy use.

The GPD WIN 4 is a highly portable gaming powerhouse capable of playing the latest AAA Windows games and higher end emulators. It is ideal for those on the go such as your daily work commute or while traveling. And for the ultimate in gaming, connect to it an eGPU and enjoy even faster performance on the big screen TV.

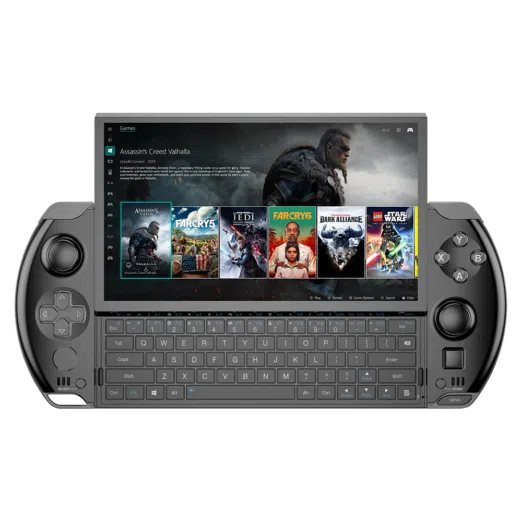

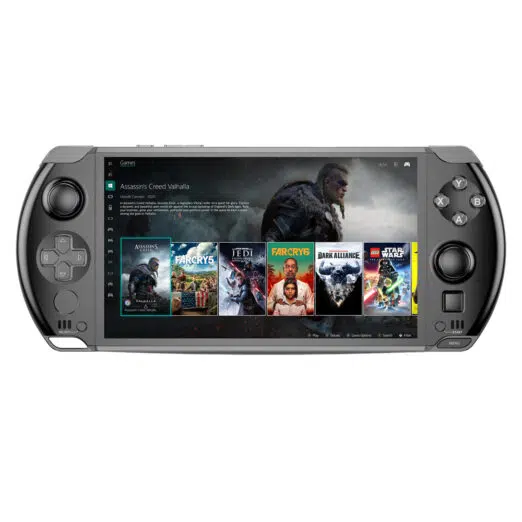

GPD Win 4 pear white can use as gamepad GPD Win 4 raven black big display

Softwares
OS Windows 11 Home 64bit,Steam OS
Security Fingerprint Recognition
Processor
Brand AMD
Model Ryzen 7 6800U
Lithography 6nm
# of Cores / # of Threads 8C / 16T
Base Frequency 2.70 GHz
Maximum Frequency 4.70 GHz
TDP 28W
Graphics Processor
Interface Integrated Graphics
Brand AMD
Model Radeon 680M
Graphics Max Dynamic Frequency 2.2GHz
Video Memory Shared Memory
HDMI 2.1(TMDS) 3840×2160 @60Hz
OpenGL 4.6
DirectX DX12,DX12.1,DX 12 Ultimate
Memory/Storage
Memory 16GB / 32GB
Memory Types LPDDR5-6400 MT/s
Memory Channel Quad 32-bit Channels
Hard Disk Type M.2 SSD
Hard Disk Interface Socket 3
Hard Disk Specifications 1 × M.2(PCIe 4.0)NVMe 2280 SSD, Only Supports Single-Side Device Layouts
Bus Specification PCIe Gen 4.0 × 4
Transfer Protocol NVMe 1.3 / 1.4
Multimedia Support
Audio System Built-in Sound Chip + Intelligent Amplifier
Loudspeakers Built-in Dual Speakers
Microphone Built-in Microphone
Network
4G LTE Module Type of SIM Card: Nano-SIM, Single
Wi-Fi IEEE 802.11 a/b/g/n/ac/ax, Support 2.4G/5G Dual Frequency Band
Bluetooth 5.2
I/O Interface
Video / Data / Charging
  • 1 × USB4, 40Gbps(Full Speed)
  • 1 × USB 3.2 Gen 2 Type-C Full-featured, 10Gbps
  • 1 × USB 3.2 Gen 2 Type-C Charging Only (Provided By The Dock)
  • 4 × USB 3.2 Gen 2 Type-A, 10Gbps (3 At The Dock)
  • 1 × HDMI 2.0 (1 At The Dock)
microSDXC Slot Maximum Capacity: 2TB ; Read/Write: 160MB/s, 90MB/s
Audio 1×3.5mm Headphone/Microphone Combo Interface
Ethernet Interface 1×RJ45 (Provided By The Dock)
Battery
Battery Type Li-polymer
Battery Capacity 45.62Wh
Battery Life 2 Hours Of Heavy Use, 3-6 Hours Of Moderate Use, 10 Hours Of Light Use, Depending On The Specific Environment Of Use
    • 1 * USB Type-C Cable
    • 1 * Power Adapter
    • 1 * User manual
